240t/h Road Construction Recycling Asphalt Mixing Plant
Product Description
Overview
ZOOMLINE RAP series asphalt recycling plant adopt world advanced technology, combined with decades of technical development and operational experience, solved the problems of large number of asphalt road recycling, environmental protection and cost etc.
ZOOMLINE RAP series asphalt recycling plant completely solved the technical problems of easy regeneration of aging, adhesion etc. during the old asphalt heating process. The max thermal regeneration adding proportion can reach 60% which make the asphalt recycling plant is the ideal choice for big and middle road maintenance units.
ZOOMLINE RAP series asphalt recycling plant mainly including: cold aggregate supply system, elevator, drying drum, burner, RAP conveying belt and storage bin, dust collecting system and control system.
Specification of RAP Asphalt Recycling Plant
| Model | ZAP-S80
&RAP60 | ZAP-S120
&RAP80 | ZAP-S160
&RAP80 | ZAP-S160
&RAP120 | ZAP-S200
&RAP120 | ZAP-S240
&RAP120 | ZAP-S240
&RAP160 | ZAP-S320
&RAP160 |
| Raw Material Production capacity under standard conditions(T/h) | 80 | 120 | 160 | 160 | 200 | 240 | 240 | 320 |
| RAP Production capacity under standard conditions | 60T/h | 80T/h | 80T/h | 120T/h | 120T/h | 120T/h | 160T/h | 160T/h |
| Total output of equipment under standard conditions (including RAP) | 120T/h | 175T/h | 240T/h | 280T/h | 280T/h | 320T/h | 360T/h | 400T/h |
| Installed power(KW) | 265+130 | 370+150 | 500+150 | 500+210 | 570+210 | 640+210 | 640+300 | 870+300 |
| Emission concentration | <30mg/Nm³ (Bag house dust filter) |
| Environmental noise | |
| Mixer capacity(kg/batch) | 1500 | 2000 | 3000 | 3500 | 3500 | 4000 | 4500 | 5000 |
| Measuring Accuracy | Static: Aggregate: 0.5% Powder: 0.3% Asphalt: 0.2% Recycled material: 0.5% Additive: 0.2% |
| Filtering Area(m2) | 650 | 770 | 1050 | 1150 | 1150 | 1350 | 1350 | 1600 |
| RAP Add ratio | 50% | 50% | 30% | 40% | 40% | 35% | 50% | 40% |
| Optional items | 1.Bitumen smoke treatment system.
2.The whole station package and dust collecting system.
3.Foam asphalt system (warm mixing system). |
Main features:
On the basis of many years of experience in construction experience and absorbed advanced experience at home and abroad, ZOOMLINE Asphalt Recycling Mixing Plant(RAP)series has solved the big problem of adhesion which the asphalt regenerated material in the recycling operation for the normal additional asphalt though independent innovation research and development. It can keep the normal production of the asphalt mixing plant and add a certain proportion of asphalt recovery to stir in the mixing cylinder with aggregate, so as to increasing output and reduce the cost of production in operation. In order to achieve this goal, the capacity of the mixing cylinder in Asphalt plant is increased and the bag dust collector is equipped to meet the heat regeneration equipment. The configuration of the integral Recycling asphalt plant in ZOOMLINE machinery is diversified, in which a separate mixing tank for recycled bitumen and regenerant can be added to the main recycling building according to customer requirements.
1. Excellent cost-effective - Drying, Mixing, surplus design Dust removal, High overall output. The drying drum and Mixer using long life wear-resistant parts with long service life.
2. High efficiency and energy saving- The burner adopts high efficiency medium atomization and high combustion efficiency. The thermal storage bins are insulated, and thermal insulation measures are adopted for all the heat operation steps.
3. Environmental protection - the whole station has packaging, dust removal, ventilation and other equipment. The storehouse is equipped with bituminous smoke treatment equipment.
4. Reliable operation- Key components adopt international first-class brands, and transmission parts have safety protection devices.
Product Tags:
|
|

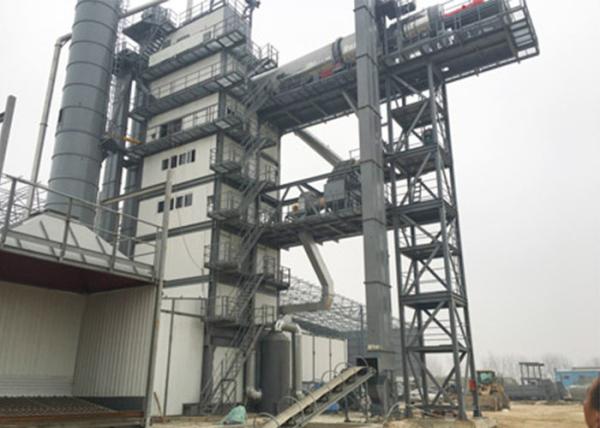

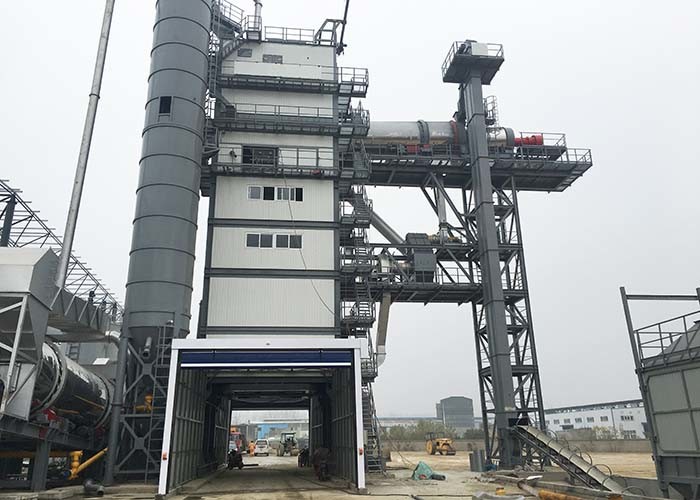

Road Construction 240t/H Asphalt Recycling Plant Images
|
