320t/h stationary asphalt mixing plant price
Main advantages of 320t/h batch mix bitumen plant:
• Cost effective solutions for your project
• Multi-fuel burner for choose
• Environmental protection, energy saving, safe and easy to operate
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Rational layout, simple foundation, easy to be installed and maintenance
Technical parameter of ZAP-S320 320t/h asphalt mixing plant
| ZAP-S320 stationary asphalt mixing plant |
| Rated capacity | 320T/H | Standard condition |
| Total power | 800kw | Standard configuration |
| Cold aggregate kinds | 5 | |
| Rated drying capacity | 320T/H | 5% moisture |
| Mixing cycle | 45S | |
| Mixer volume | 4000kg | |
| vibration screen | single axle circle vibrating screen | Five-deck |
| Fuel consumption | ≤6.5kg/t finished product | |
| Fuel type | Heavy/ Light oil | Coal burner is optional |
| Control mode | Manual/ Automatic | |
| Finished product temperature | 140-180°C | |
| Aggregate weighting precision | ±0.5% | Dynamic |
| Mineral weighting precision | ±0.5% | Dynamic |
| Bitumen weighting precision | ±0.3% | Dynamic |
| Dust control way | Bag house dust collector | |
| Exhaust emission concentration | ≤20mg/Nm3 | |
| Finished product bin | Bottom placed/side placed | Optional
|
Main components of 320TPH asphalt hot mix plant:
Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
Cold Aggregate Feeding Bin
- Feeding control by frequency converter, automatic control to make feeding smoothly
- With alarming device for material shortage
- Adopt seamless belt, long service life
Drying Drum & Burning System
- Exclusive design of material blade, improve heating efficiency 30% than conventional design, energy saving
- Body and material blade adopt boiler iron, long service life
- 50mm thickness heat insulation layer, low heat loss
- “Butterfly” elastic connection plate design, avoid elastic cracking
- Italy EBICO oil/gas/coal burner: high combustion efficiency, saving energy and low emission
- HONEYWELL temperature control system, safe and easy operation
Mixing Tower
- Improved vibration and amplitude to optimize impact on the available screen
- All our screens have the largest screening area in their class
- The best combination of vibrating direction & screen box dip angle, ensure ratio and screening efficiency
- Adopt long arms and short shaft, and shallow structure, more compact
- Large sliding gate structure, discharge asphalt mixture speedy
- Mixing blade and scale board adopt wear-resistant alloy iron, long service life
- Bidirectional mixing blades, mix in 3D spaces, high mixing efficiency
Bitumen Storage & Heating System
- Electric/diesel/gas/coal powered heating type as optional for convenience of users
- QINGTIAN bitumen gear pump, long service life and low failure rate
- Integrated modular design, easy to transport

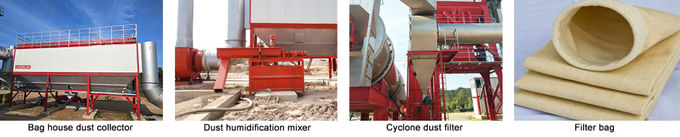

Dust Collecting System
- Gravity primary dust collector collecting and recycling bigger fine, saving consumption
- Bag house secondary dust collector control emission be lower than 20mg/Nm3, eco-friendly
- USA Dopont NOMEX filter bags, high temperature resistance and long service life
- Smart control of pulse dust removal system, removing dust clearly
- High temperature alarming and automatic cold air value unit, ensure safety of bags
- Dust humidification mixing machine to avoid dust flying
Control System
- Adopt Switzerland METTLER TELEDO weighing modular accurate weighing
- Adopt Germany FESTO cylinder & magnetic valve, long service life and low failure rate
- Germany SIEMENS electrical element, working stably
- Japan ORMON PLC and touch screen, with multi-language display, easy operation and control

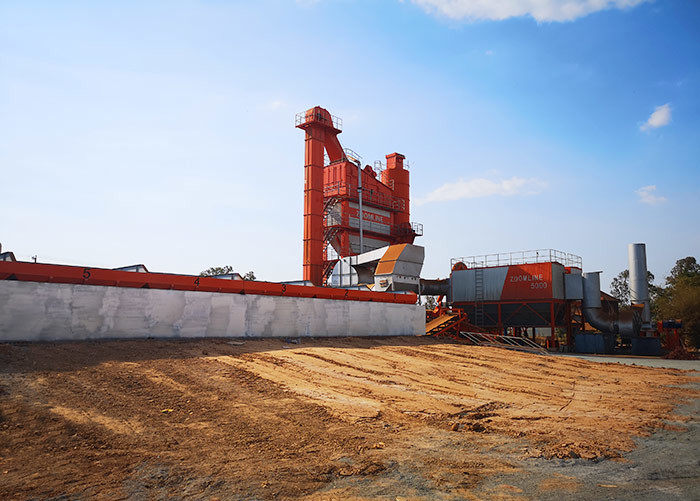

Asphalt mixing plant projects
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.
Our service
1. Strong after-sales service team
We have a professional after-sales service team with advanced technology wich can provide you timely and reliable guarantee for all the after-sales service.
Transport----Basic site handle----Equipment installation-----Equipment debugging----Staff training---Technical support----Spare parts supply
Provide tracking service to your equipment.
2. Perfect accessories gallery
Machinery accessories gallery: kind of standard components, bears, reducer, motor, convey belt, axle and other machined part.
Electrical accessories gallery
3. Rapid response
We have kinds of communicate method, we can handle your problem the first and give you feedback within 24 hours no matter which method you choose.
